Usage:for 65mm-120mm Frame Kit

FC Firmware:BF ZEUSF722_AIO(HGLR)

Installing Hole:25.5X25.5mm.M2


F722 FC+13A BL32 ESC

Input Voltage:3-6S

FC Firmware:BF ZEUSF722_AIO(HGLR)

ESC Firmware:BL32

Installing Hole:25.5X25.5mm.M2

Dimensioms:32.5x32.5mm

Weight:7.9g


F722 Flight Controller

CPU:STM32F722

MPU:MPU6000

OSD:Support

LED:Support

BEC:10V/1A

BEC:5V/2A

BlackBox:8M

UARTS:5


13A BL32 4in1 ESC

Current Sensor:NO

Constant Current:13A

Peak Current:15A(5s)

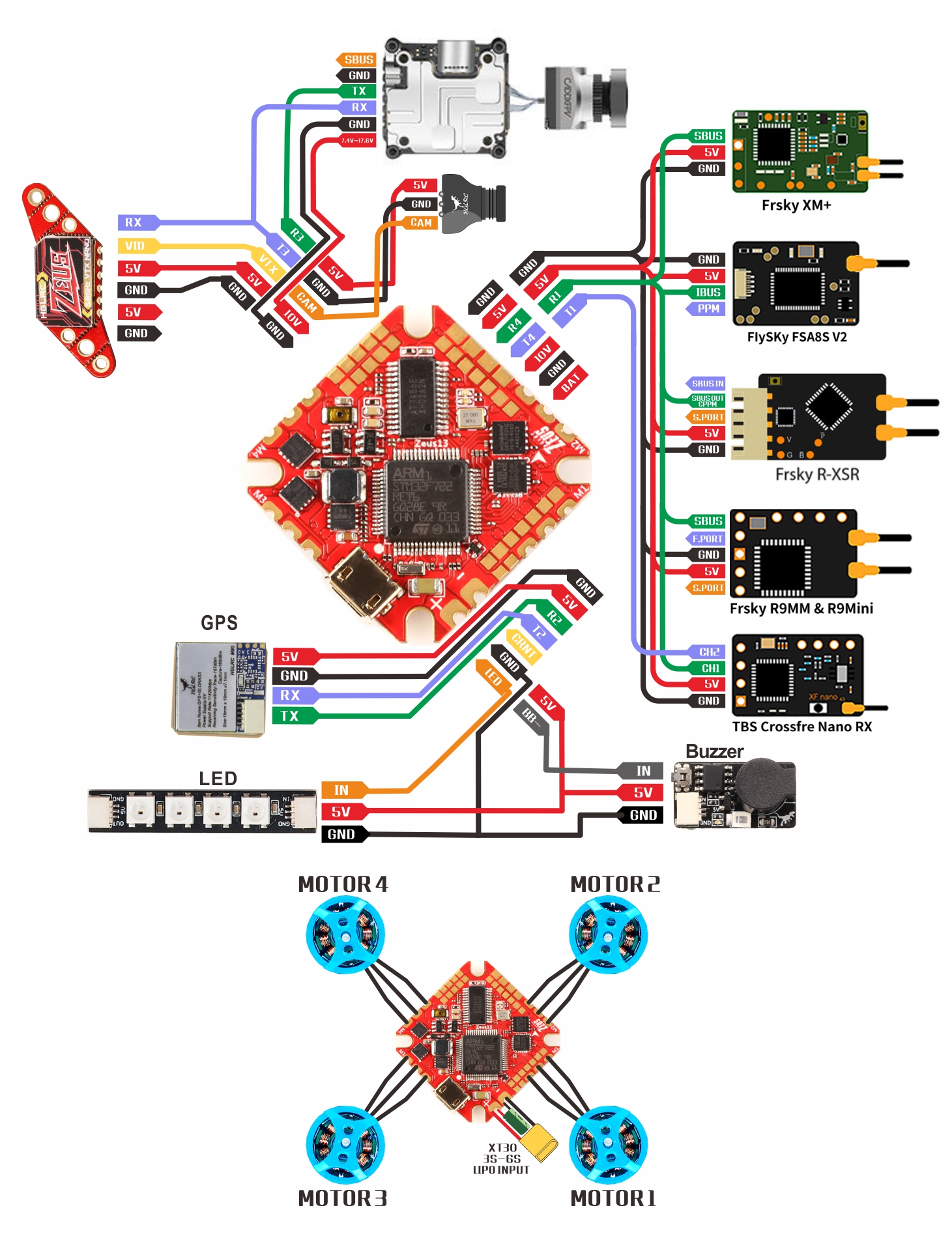

Zeus13 AIO wiring diagram:




Check Zeus13 AIO CLI File Here

Check Zeus13 AIO Betaflight File Here

Check Zeus13 AIO Flash Tutorials Here

See manual here:Zeus13 AIO
