16x16 FD411 3-6s Flight Controller for FD413 Stack
Print
Created by: HGLtech company
Modified on: Sat, 15 Jan, 2022 at 11:16 AM
Item Name:FD411 Flight Controller
MPU: MPU6000-SPI
CPU: STM32F411CEU6
Black Box: NO
Input Voltage: 3-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V2A
Size: 21x21mm
Installing Hole: 16x16mm, M2
Weight:2.7g
Support SBUS/PPM/DSMX/iBUS receiver

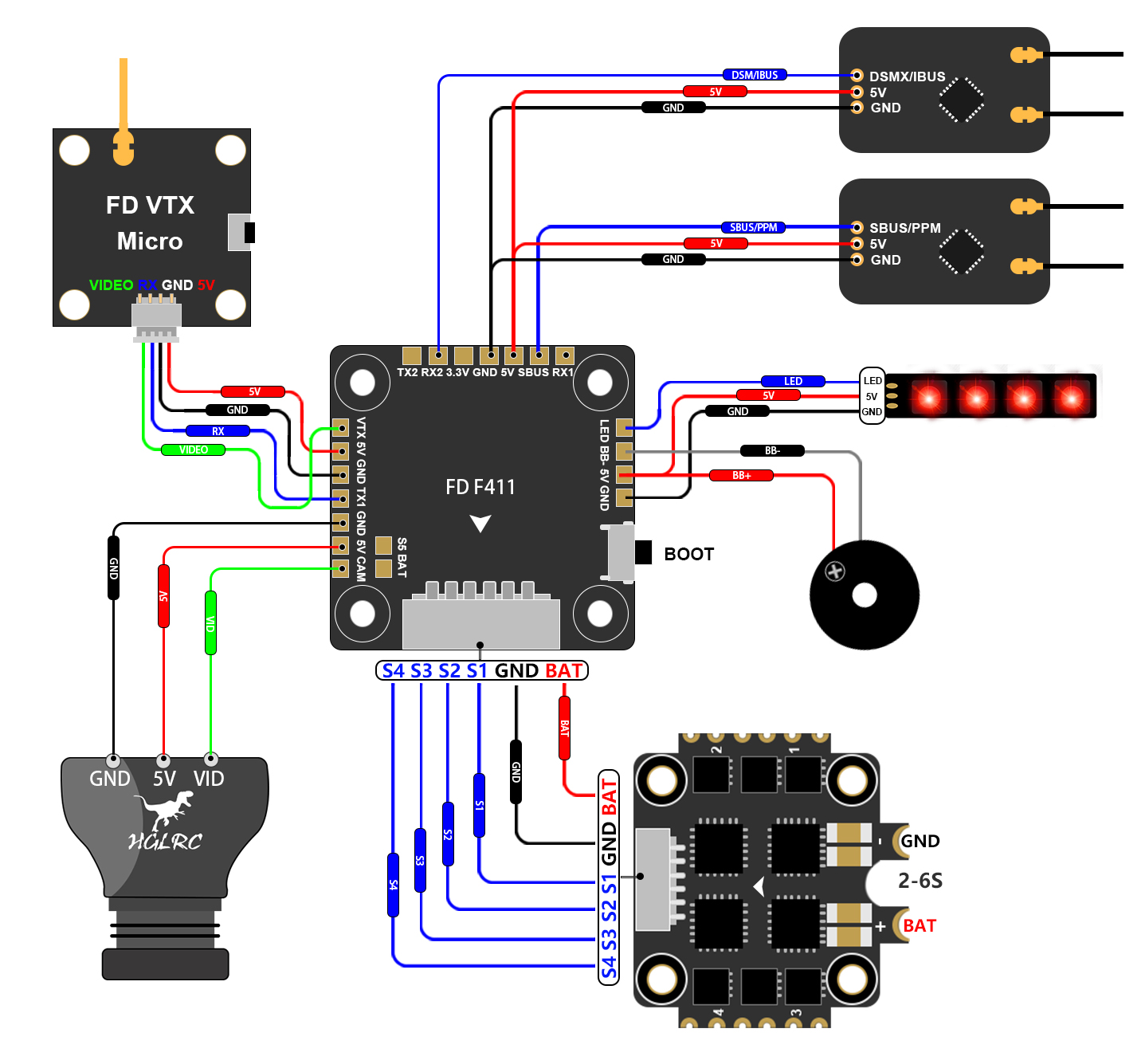

FD411 Flight Controller wiring diagram：
Check FD411 Flight Controller CLI File Here
Check FD411 Flight Controller Betaflight Firmware File Here
Check FD411 Flight Controller Flash Tutorials Here
