Model: Forward F4 MINI Flight Control

CPU: STM32F405R6T6

MPU: MPU6000-SPI

Input Voltage: 2-6S Lipo

Firmware: Betaflight OMNIBUSF4V6

Built-in Betaflight OSD to adjust PID

BEC Output: 5V@3A

Size: 25.0x25.0mm board

Installing Hole:20x20mm,M2

Weight:4.7g

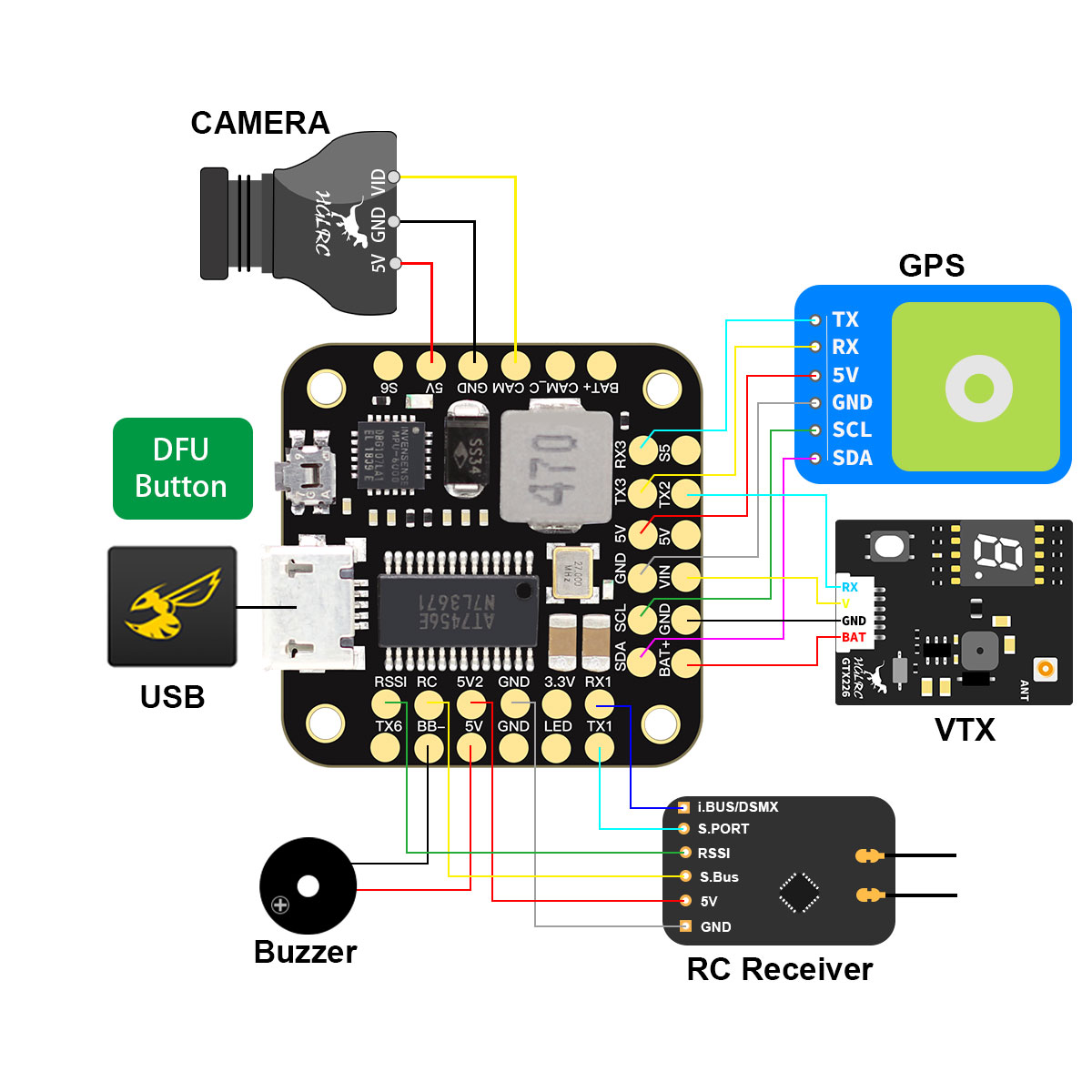

Forward F4 MINI wiring diagram:



Check Forward F4 MINI Flight Controller CLI File Here

See manual here:F4 MINI Flight flight controller
